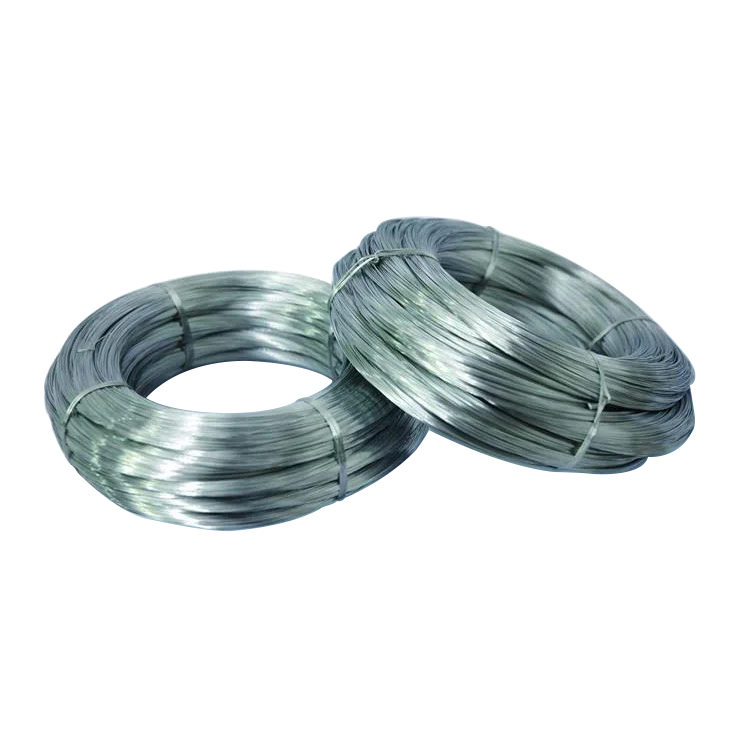

Electro Galvanized Iron Wire(Metal Wire Mesh)

Short Description:

Diameter Range: 0.2-5.00 mm
Surface Finish: Electro Galvanizing


Product Detail

Product Tags

The metallic zinc coatings applied by the galvanizing process are an effective way of combating corrosion in steel.

Galvanised Wire Working Specifications

Given that galvanized wire is classified according to the amount of zinc coating, the following table outlines the difference between tensile strength.

Nominal Diameter Minimum Coating Mass (g/m2)
over 0.6mm up to and incl. 0.65mm 25
over 0.75mm up to and incl. 0.85mm 25
over 0.85mm up to and incl. 0.95mm 25
over 0.95mm up to and incl. 1.06mm 25
over 1.06mm up to and incl. 1.18mm 25
over 1.18mm up to and incl. 1.32mm 30
over 1.32mm up to and incl. 1.55mm 30
over 1.55mm up to and incl. 1.80mm 30
over 1.80mm up to and incl. 2.24mm 30
over 2.24mm up to and incl. 2.72mm 35
over 2.72mm up to and incl. 3.15mm 35
over 3.15mm up to and incl. 3.55mm 45
over 3.55mm up to and incl. 4.25mm 50
over 4.25mm up to and incl. 5.00mm 50

Electro Galvanized Iron Wire

Diameter Properties

Standard Galvanized Wire is manufactured to comply with the following diameter tolerances:

Nominal Wire Diameter Tolerance (mm)
over 0.80mm up to and incl. 1.60mm +/-0.03
over 1.60mm up to and incl. 2.50mm +/-0.03
over 2.50mm up to and incl. 4.00mm +/-0.03
over 4.00mm up to and incl. 6.00mm +/-0.03
over 6.00mm up to and incl. 10.00mm +/-0.03

Tensile Strength (Mpa)

The tensile strength is defined as the maximum load achieved in the tensile test, divided by the cross-sectional area of the wire test piece. Galvanized Wire is produced using soft, medium and hard grade wires. The following table specifies the tensile range according to the grade:

Grade Tensile Strength (Mpa)
Galvanised – Soft Quality 380/550
Galvanised – Medium Quality 500/625
Galvanised - Hard Quality 625/850

Please note that the sizes mentioned above are indicative only and do not specify the size range available from my products range.

Steel Chemistry

A combination of steel grades is used and heat treatment processes to manufacture soft, medium and hard tensile grades. The table below is indicative only of steel chemistries used.

Tensile Grade % Carbon % Phosphorus % Manganese % Silicon % Sulphur
Soft 0.05 max 0.03 max 0.05 max 0.12-0.18 0.03 max
Medium 0.15-0.19 0.03 max 0.70-0.90 0.14-0.24 0.03 max
Hard 0.04-0.07 0.03 max 0.40-0.60 0.12-0.22 0.03 max

Packing

Jumbo Coil Paking; ID 450mm OD 800mm; OR ID 508mm OD 840mm
