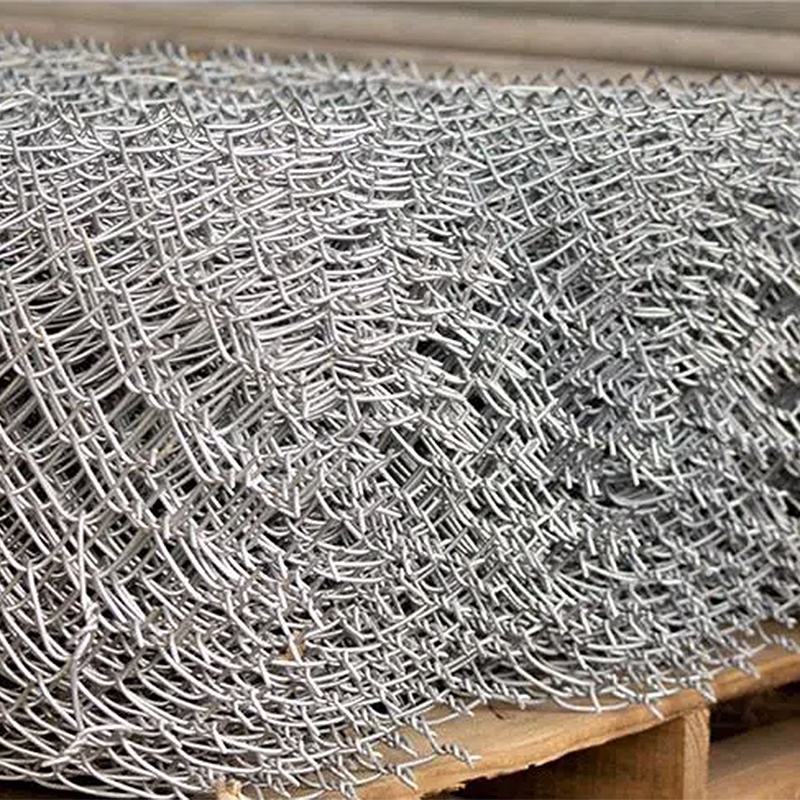

Chain Link Wire
Feature:
1. Durable and corrosion resistant.
2. Sufficient inventory, can be ordered in large quantities.
3. Quality assurance, long service life.
Wire Specifications
Diameter Tolerances
| Nominal Wire Diameter | Tolerance (mm) |
| over 0.80mm up to and incl. 1.60mm | +/-0.03 |
| over 1.60mm up to and incl. 2.50mm | +/-0.03 |
| over 2.50mm up to and incl. 4.00mm | +/-0.03 |
| over 4.00mm up to and incl. 5.00mm | +/-0.04 |
| over 5.00mm up to and incl. 8.00mm | +/-0.04 |
Galvanised Coating Weight – AS3863; EN 10244; ASTM A 641
| Wire Diameter | Wire Diameter | Minimum Ctg Mass Class 1 (g/m2) | Minimum Ctg Mass Class 2 (g/m2) | Minimum Ctg Mass Class 3 (g/m2) |
| (mm) | (inch) | |||
| 2.41 | 0.095 | 90 | 245 | 365 |
| 2.68 | 0.106 | 90 | 245 | 365 |
| 2.74 | 0.108 | 90 | 245 | 365 |
| 2.79 | 0.11 | 90 | 245 | 365 |
| 3.38 | 0.133 | 90 | 245 | 365 |
| 3.4 | 0.134 | 90 | 245 | 365 |
| 3.68 | 0.145 | 90 | 245 | 365 |
Tensile Strength (MPa)
The tensile strength is defined as the maximum load achieved in a tensile test divided by the cross sectional area of the wire test piece. The tensile strength range is 448-517 MPa; 551-620 MPa; 65000psi~75000psi;80000psi~90000psi
Steel Chemistry
A combination of steel grades is used and heat treatment processes to manufacture soft, medium and hard tensile grades. The table below is indicative only of steel chemistries used.
| Tensile Grade | % Carbon | % Phosphorus | % Manganese | % Silicon | % Sulphur |
| Standard | 0.04~0.07 | 0.032 | 0.5 ~1.00 | 0.10~0.34 | 0.041 |
| High | 0.1~0.18 | 0.035 | 0.5 ~1.10 | 0.10~0.35 | 0.045 |
Quality Control:
We use total quality control system. Every pieces of the raw material; semi-finished products and finished products are tested and recorded in file. The tracking record is used from final products to the very first beginning raw material steel factories.
Third Part like SGS is available for test control before shipment.
Packing:
1) All the products are packed with seaworthy packing.
2) Customer’s special requirement for packing can be satisfied.
3) Air freight; sea freight and truck freight are all available.
Scope of application:
Used for industrial protection of chain links, gabions and various nets. Low carbon galvanized wire for the production of chain links
