Top Suppliers Fencing wire - Steel Wire For Rope – TIANJIN MEIJIAHUA
Top Suppliers Fencing wire - Steel Wire For Rope – TIANJIN MEIJIAHUA Detail:
The steel wire rope needs to be subjected to alternating loads during its use, and its performance is mainly determined by the mechanical properties of the steel wire, the surface state of the steel wire and the structure of the steel wire rope. The steel wire material includes carbon steel or alloy steel, which is made by cold drawing or cold rolling. The cross section of the steel wire is round or special-shaped (T-type S-type Z-type). The special-shaped cross-section steel wire is mainly used for the production of sealing wire ropes. High tensile strength and toughness, and suitable surface treatment of steel wire to meet the needs of different environmental conditions.
Additional Info
Diameter Range: 0.6-5.0 mm
Surface Finish: Hot Dipped Galvanizing
Galvanised Wire Working Specifications
Given that galvanized wire is classified according to the amount of zinc coating, the following table outlines the difference between tensile strength.
| Nominal Diameter | Minimum number of reverse bends | Minimum number of Torsions (Bright and Class B) | ||||
| (Bright and Class B) | ||||||
| 1770 Mpa | 1960 Mpa | 2160Mpa | 1770 Mpa | 1960 Mpa | 2160Mpa | |
| Over 0.6mm ~ incl.0.65mm | 11 | 10 | 9 | 28 | 25 | 23 |
| Over 0.65mm ~ incl.0.70mm | 10 | 9 | 8 | 28 | 25 | 23 |
| Over 0.70mm ~ incl.0.75mm | 16 | 15 | 14 | 28 | 25 | 23 |
| Over 0.75mm ~ incl.0.80mm | 15 | 14 | 13 | 28 | 25 | 22 |
| Over 0.80mm ~ incl.0.85mm | 13 | 12 | 11 | 28 | 25 | 22 |
| Over 0.85mm ~ incl.0.90mm | 12 | 11 | 10 | 28 | 25 | 22 |
| Over 0.90mm ~ incl.0.95mm | 11 | 10 | 9 | 28 | 25 | 22 |
| Over 0.95mm ~ incl.1.00mm | 10 | 9 | 8 | 28 | 25 | 22 |
| over 1.00mm ~ incl.1.10mm | 17 | 16 | 14 | 26 | 23 | 21 |
| over 1.10mm ~ incl.1.20mm | 16 | 15 | 13 | 26 | 23 | 21 |
| over 1.20mm ~ incl.1.30mm | 15 | 14 | 13 | 25 | 22 | 20 |
| over 1.30mm ~ incl.1.40mm | 13 | 12 | 10 | 25 | 22 | 19 |
| over 1.40mm ~ incl.1.50mm | 11 | 10 | 9 | 25 | 22 | 19 |
| over 1.50mm ~ incl.1.60mm | 14 | 13 | 12 | 25 | 22 | 19 |
| over 1.60mm ~ incl.1.65mm | 13 | 12 | 11 | 25 | 22 | 19 |
| over 1.65mm ~ incl.1.70mm | 13 | 12 | 11 | 25 | 22 | 19 |
| over 1.70mm ~ incl.1.80mm | 11 | 11 | 10 | 25 | 22 | 19 |
| over 1.80mm ~incl.1.85mm | 10 | 10 | 8 | 24 | 21 | 18 |
| Over 1.85mm ~ incl.1.90mm | 10 | 10 | 8 | 24 | 21 | 18 |
| Over 1.90mm ~ incl.5.00mm | 9 | 9 | 7 | 24 | 21 | 18 |
| Nominal Diameter | Minimum mass of coating (g/m2) |
| Class B | |
| over 0.6mm ~ incl.0.65mm | 60 |
| over 0.65mm ~ incl.0.70mm | 60 |
| over 0.70mm ~ incl.0.75mm | 60 |
| over 0.75mm ~ incl.0.80mm | 60 |
| over 0.80mm ~ incl.0.85mm | 70 |
| over 0.85mm ~ incl.0.90mm | 70 |
| over 0.90mm ~ incl.0.95mm | 70 |
| over 0.95mm ~ incl.1.00mm | 70 |
| over 1.00mm ~ incl.1.10mm | 80 |
| over 1.10mm ~ incl.1.20mm | 80 |
| over 1.20mm ~ incl.1.30mm | 90 |
| over 1.30mm ~ incl.1.40mm | 90 |
| over 1.40mm ~ incl.1.50mm | 100 |
| over 1.50mm ~ incl.1.60mm | 100 |
| over 1.60mm ~ incl.1.65mm | 100 |
| over 1.65mm ~ incl.1.70mm | 100 |
| over 1.70mm ~ incl.1.80mm | 100 |
| over 1.80mm ~incl.1.85mm | 100 |
| over 1.85mm ~ incl.1.90mm | 115 |
| over 1.90mm ~ incl.5.00mm | 115 |
Packing:

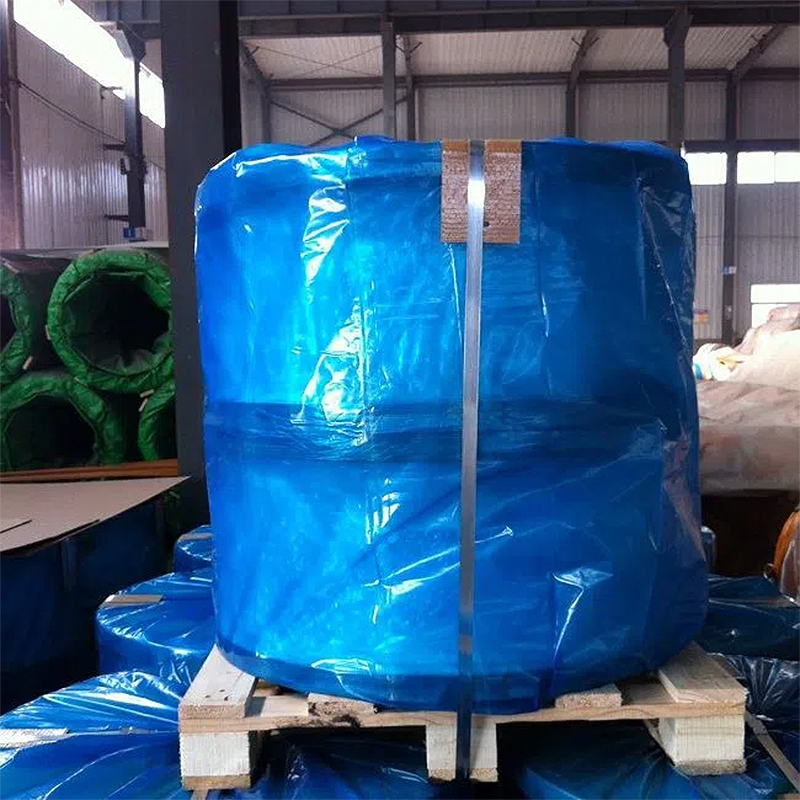

Jumbo Coil Paking; ID 450mm OD 800mm; OR ID 508mm OD 840mm
Steel Chemistry
Raw Material: 45#, 55#, 60#, 70#, 72A, 80#, 82A
The table below is indicative only of steel chemistries used.
| - | HDLC | Truform | Hiform |
| % Carbon | 0.04 – 0.07 | 0.05 max | 0.06 max |
| % Phosphorus | 0.03 max | 0.03 max | 0.04 max |
| % Manganese | 0.40 – 0.60 | 0.50 max | 0.25 – 0.50 |
| % Silicon | 0.12 – 0.22 | 0.12 – 0.18 | 0.05 max |
| % Sulphur | 0.03 max | 0.03 max | 0.04 max |
